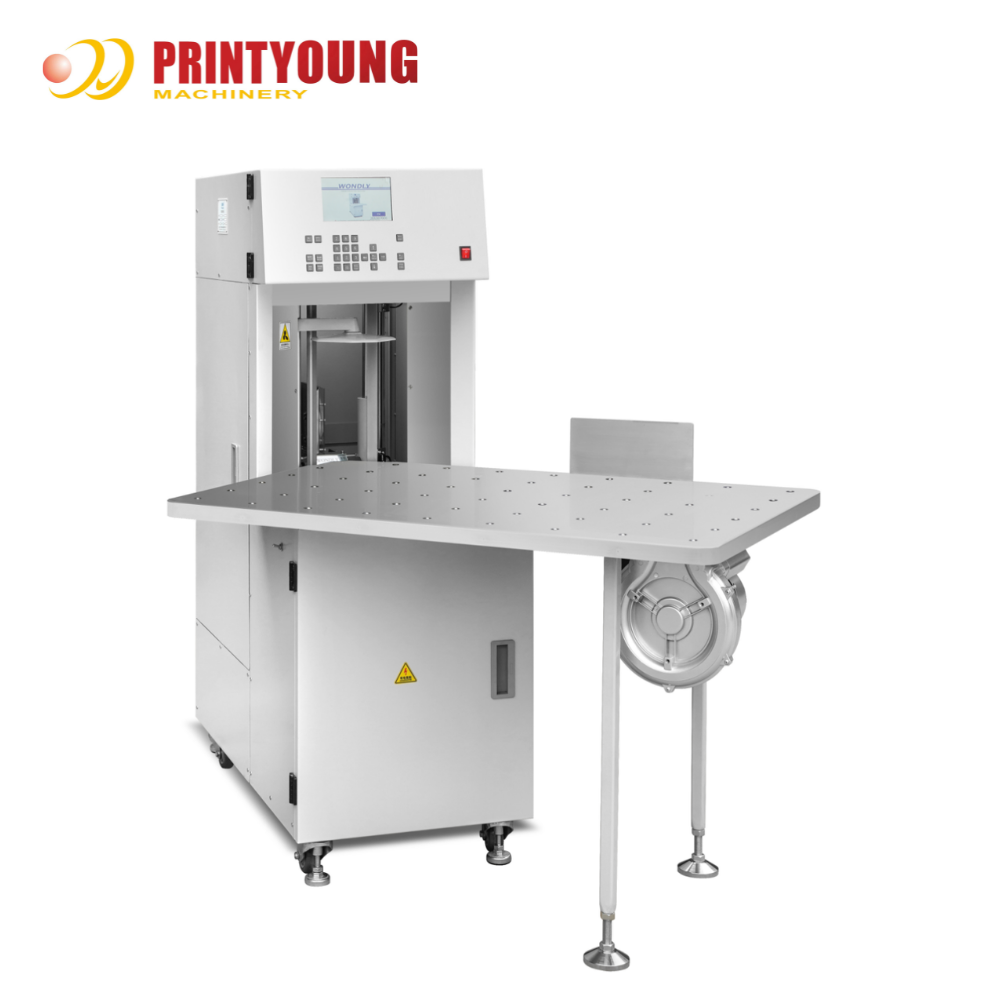

Name: PRINTYOUNG SZJ-DL Eco-Friendly Thick Paper Counting Machine 220V 300mm/once Capacity 1100mm Max Width
Brand: Shanghai Printyoung International Industry Co.,Ltd
SKU: سزج-DL
Price: 13800 USD
Availability: InStock

PRINTYOUNG SZJ-DL Eco-Friendly Thick Paper Counting Machine 220V 300mm/once Capacity 1100mm Max Width

المعلومات الأساسية

مكان المنشأ:	الصين
اسم العلامة التجارية:	PRINTYOUNG
إصدار الشهادات:	CE
رقم الموديل:	سزج-DL

الحد الأدنى لكمية:	1 مجموعة
الأسعار:	USD 13800 Set
وقت التسليم:	30 يوم عمل
شروط الدفع:	الاعتماد المستندي، تي/تي
القدرة على العرض:	30 مجموعات شهريا

ﺎﺘﺼﻟ ﺍﻶﻧ

نطاق سمك الورق:

22 ~ 230 جم/م²

الأعلى. حجم الورق:

700*1100 ملم

دقيقة. حجم الورق:

100*150 ملم

الأعلى. ارتفاع تكديس الورق:

300 ملم

جمع حجم الجدول:

1200*1300 ملم

جمع ارتفاع الجدول:

760 ملم

وزن الآلة:

260 كجم

القوة المستهلكة:

900 واط

SZJ-DL Thick Paper Counting Machine

Features

1.Adopt the international most advanced module sports computer system technology 7 inch touch screen + button dual function.

2.ARM architecture processor:The Advanced RISC Machine, formerly known as the Acorn RISC Machine,is a 32-bit RISC processor architecture.
(1)Compared with the traditional single-chip 40MHz,the processor of the paper machine uses ARM 9 processor faster,with a frequency of 400MHz and a 5-stage pipeline,the comprehensive speed is about 6 to 10 times that of the single-chip.
(2)Compared to Intel CPUs,ARM architecture processors use RISC simplified instruction sets,with low chip power consumption and no need for fan cooling.

3.Any kind and any thickness of paper within the parameter range can be precise and high-speed counting.Special paper depending on the actual situation.
4.The paper counting machine is rich in features to meet the needs of different users,in addition to the standard paper counting mode,there is the random paper label insert function,which can nark for different quantity of paper.It can edit and save 99 program groups,each program group can edit a different number of papers;
The paper quantity detection function is for the check whether the predetermined number and actual number matches or not;
The specified number counting function is for sorting out the required number of paper from the paper-pile.
5.Auto-diagnostic function.The operator can know from a clear error message displays on the platform which shows whether the machine fault is caused by their own operating mistakes,or the machine itself abnormal operating conditions.
6.It has a paper label fast changing structure.
7.Stainless steel table with large number of air cushion structure paper easy and convenient.

Technical Parameters

Paper Thickness Range	22 ~ 230 g/m² (carbon paper,offset printing paper,coated paper,etc.)
Max. Paper Size	700 * 1100 mm
Min. Paper Size	100 * 150 mm
Max. Paper Stacking Height	300 mm
Power Supply/Voltage	AC 220 ± 10V , 50Hz
Motor	0.4 kw
Collecting Table Size	1200 * 1300 mm
Collecting Table Height	760 mm
Machine Size	1700 * 1300 * 1500 mm
Machine Weight	260 kg
Label Size for Paper in Pile	100 * 6 mm
Consumed Power	900 W

Configuration

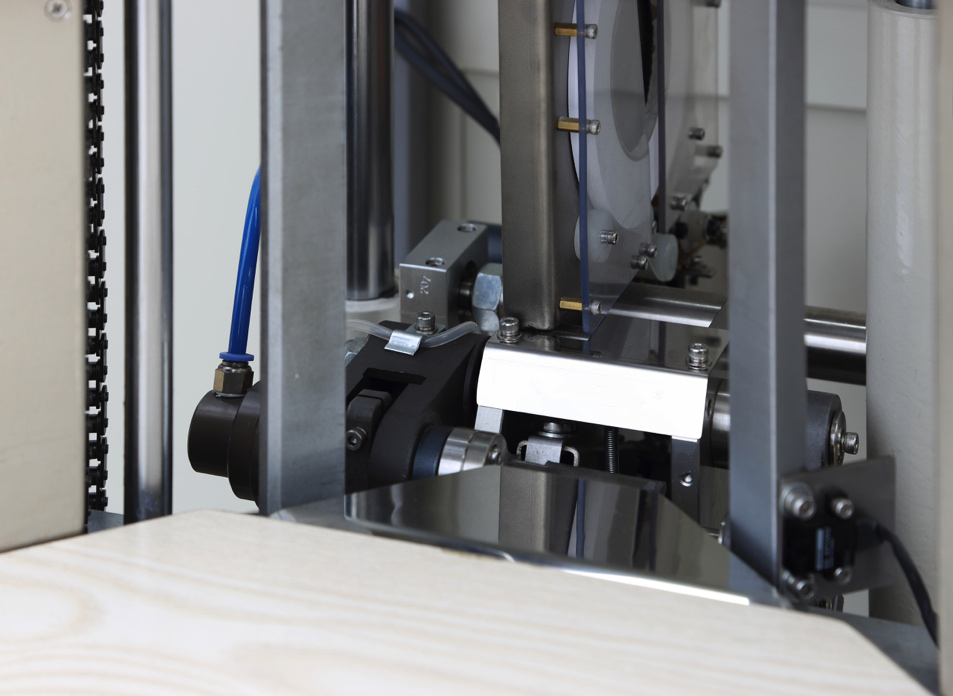

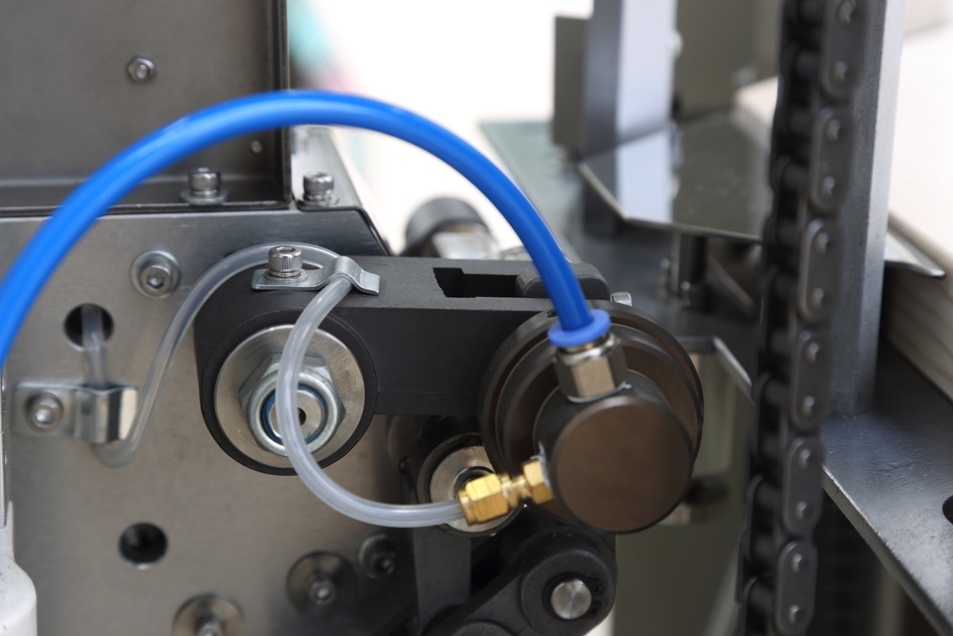

Front structure of the label cutting unit Side structure of the paper sucking unit

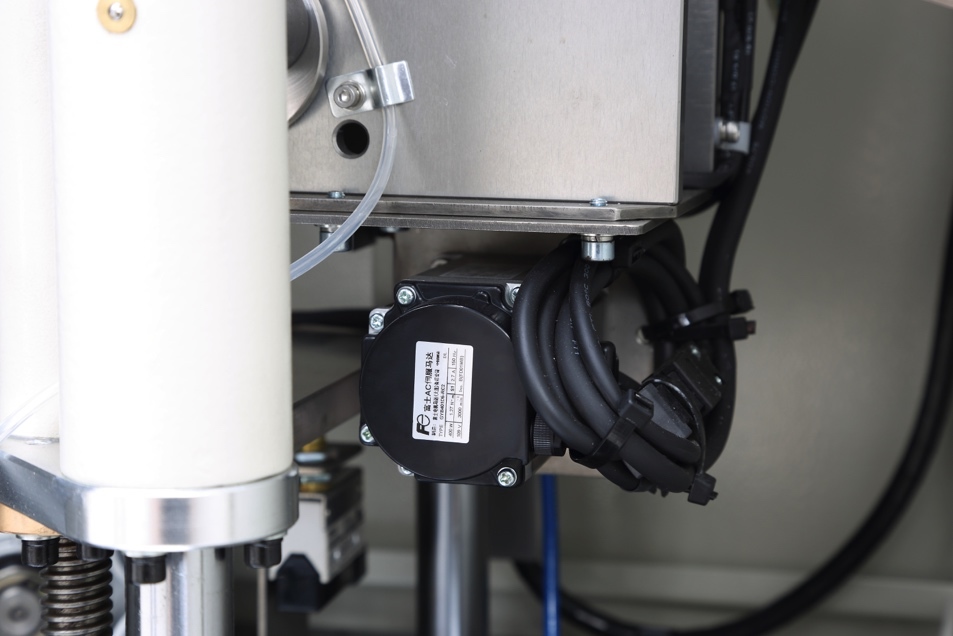

Side view of the Japan Fuji motor unit Using Omron limit sensor

Using Japanese original NSK bearing Japan Orion vacuum pump (optional)
